Home / Products / Stainless Steel Plate and Frame Filter / WK Series Stainless Steel Silica Soil Filter

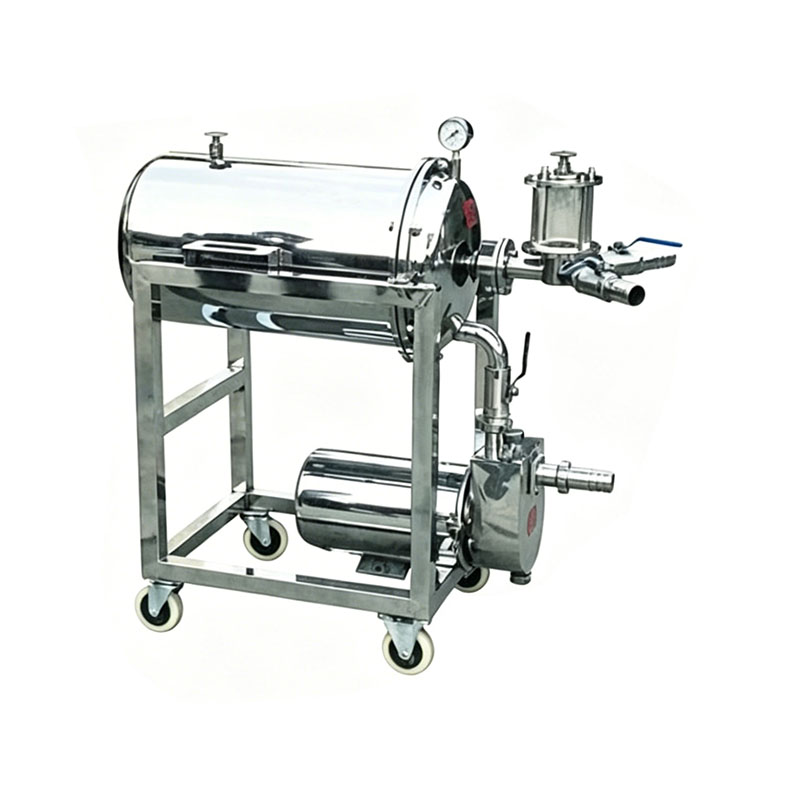

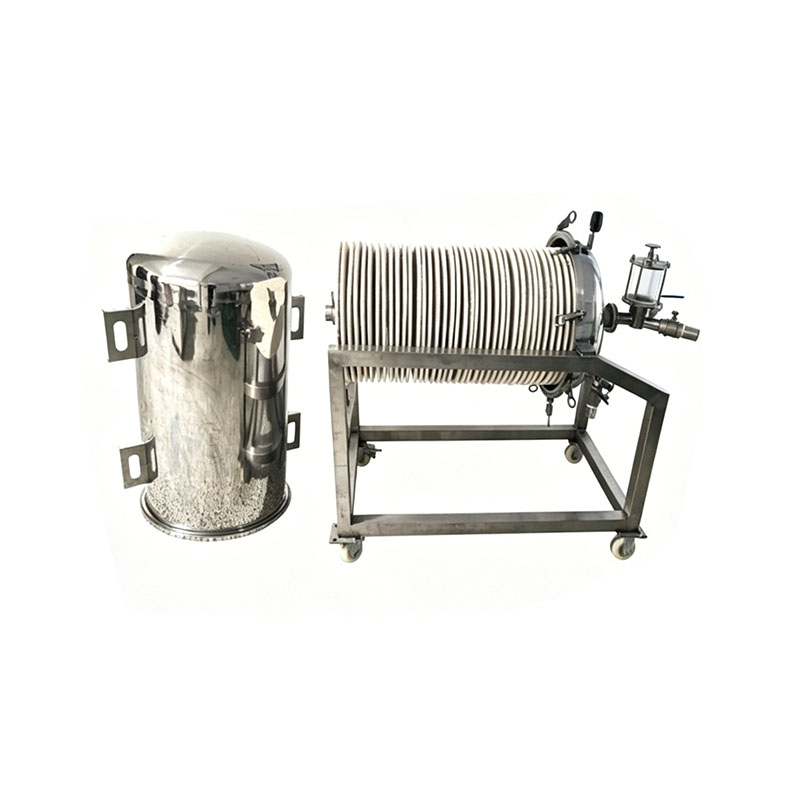

WK Series Stainless Steel Silica Soil Filter

The WK series silica soil filter produced by our company has been widely used in Baijiu, fruit wine, low alcohol wine, yellow rice wine, medicinal wine, wine and water treatment industries. The filtration clarity can reach 99.8%, and can even filter out. Escherichia coli with proper operation. lt can filter particles (including microorganisms) below 1~0.1 y m. The result is satisfactory in practical use. Our factory is willing to do our best for you to achieve good results in the filtering
process, and supply vulnerable parts at any time. The casing is made of stainless steel SUS304 and 316L, featuring compact structure, simple operation, small volume, light weight, high efficiency, stable performance, convenient movement, low filtering cost, and less sprinkling loss.

Product Parameters
Model Overall dimension (mm)

Filter area (m²)

Number of filters

Valve diameter Theoretical Quantity ln Bajiu MPa
Working Pressure
Dose (Kg) Pump Mode Required
Wk220 1100×350×450 1.1  15  DN25 0.5-2T/h ≤0.2 0.5-1 YL3-20
WK250 1100×350×450 20  DN25 1-3T/h ≤0.2 1-1.5 YL3-20
WK330-Ⅲ 1600×600×750 2.5  15  DN32 2-4TIh ≤0.3 1.5-2 YL5-25
WK330-11 1700×600×750 3.4  20  DN32 3-5T/h ≤0.3 2.-2.5 YL5-25
WK400-1 1840×680×800 5.1  20  DN32 6-8T/h ≤0.3 2.5-3 YL10-25
WK400-A 2350×680×800 9.8  38  DN32 9-12T/h ≤0.3 4.5  YL20-25
WK500-B 1950×750×850 8.5  20  DN32 8-10T/h ≤0.3 3.5-4 YL20-25
WK500-A 2450×750×850 15.9  38  DN32 13-15T/h ≤0.3 5-6 YL20-25
