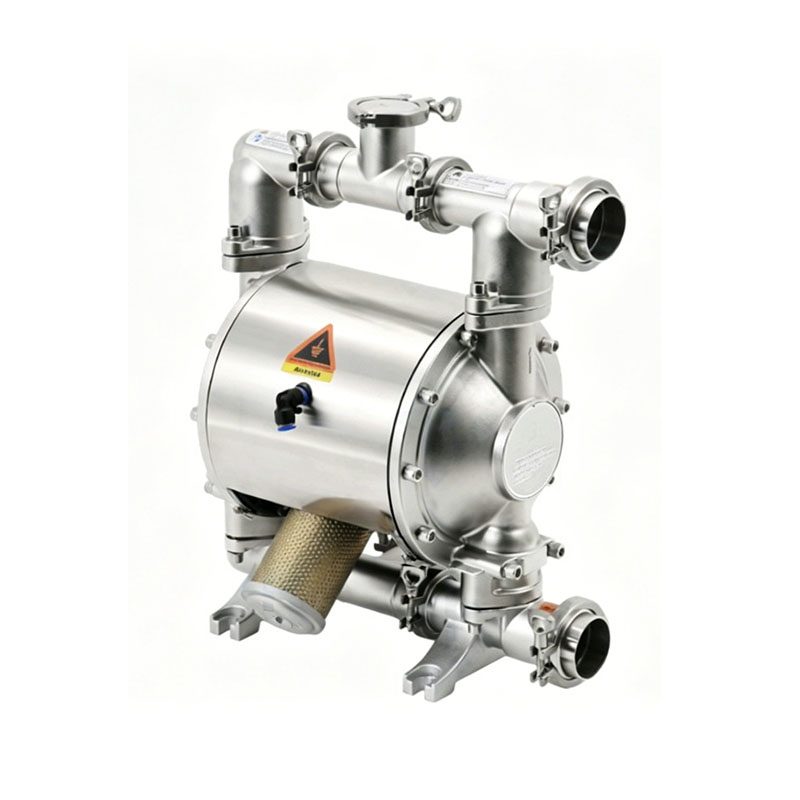

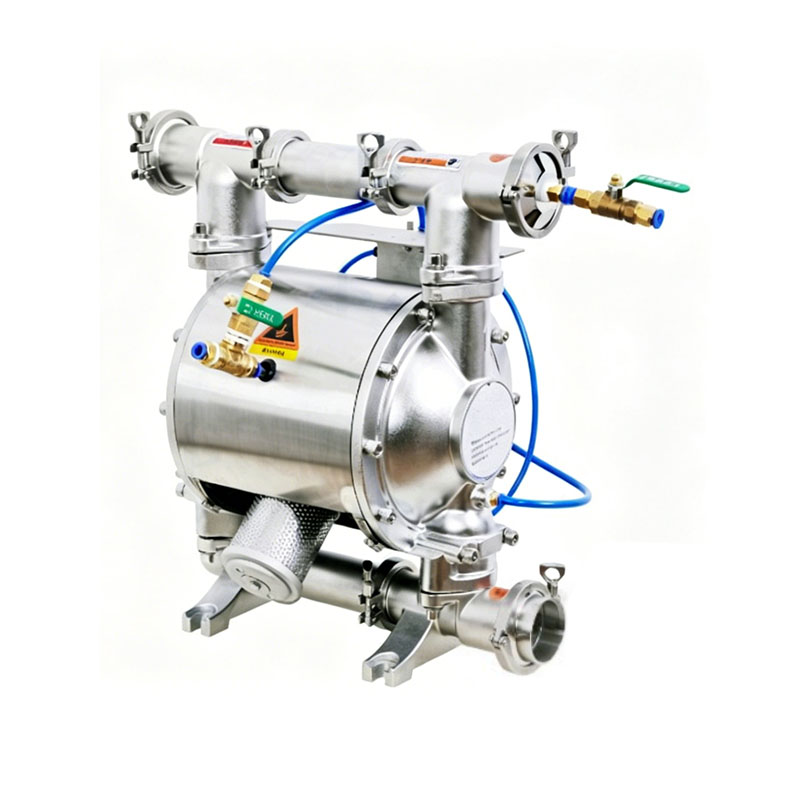

QBSY5 Series Stainless Steel Pneumatic Diaphragm Pump Liquid Transport Equipment

The company produces QBSY5 series (stainless steel SUS304, 316L) pneumatic diaphragm pumps, which are the latest transportation equipment. Compressed air is used as the power source to absorb all kinds of corrosive liquids, liquids with particles, high viscosity, high concentration, volatile, flammable and highly toxic liquids, ceramic glaze slurry, milk, honey, beverages, rice wine, jam, glue, waste oil from tanker warehouse, sludge and other liquids. There is no need for irrigation and water diversion. The maximum suction head can reach 7 meters and the lift can reach 84 meters.
The outlet pressure is s 0.8MPa, and the flow can be adjusted by the air source. No electricity is needed; it is safe and reliable to use in flammable and explosive places. The pump has no shaft seal and can run idle. If it exceeds the load, it will automatically stop. It has a self-protection function, which is a major feature of the pump.

Product Parameters
Model Flow

Lift(m)

Outlet Pressure Suction head Particle Diameter Pressure Consumption Weight
QBSY5-19 0.1-1.8 0-50 0.6MPa 4.5  2.5mm   0.6Mpa 12.7SCFM 10
QBSY5-25 0.1-1.8 0-50 0.6MPa 4.5  2.5mm   0.6MPa 12.7SCFM 10
QBSY5-32 0.1-6 0-50 0.7Mpa 4.5  3.2mm   0.75MPa 23.66SCFM 22
QBSY5-38 0.1-6 0-50 0.7MPa 4.5  3.2mm   0.75MPa 23.66SCFM 22
QBSY5-38 0.1-8.8 0-50 0.7MPa 4.9  5.48mm   0.75MPa 28SCFM 27
QBSY5-51 0.1-8.8 0-50 0.7MPa 4.9  5.48mm   0.75MPa 28SCFM 27
QBSY5-51 0.1-12 0-50 0.7MPa 5.48  5.48mm   0.75MPa 32SCFM 33
QBSY5-63 0.1-12 0-50 0.7MPa 5.48  5.48mm   0.75MPa 32SCFM 33
QBSY5-76 0.1-22 0-50 0.7MPa 5.48  6.3mm   0.75Mpa 32SCFM 69
QBSY5-89 0.1-22 0-50 0.7Mpa 5.48  6.3mm   0.75MPa 32SCFM 69
