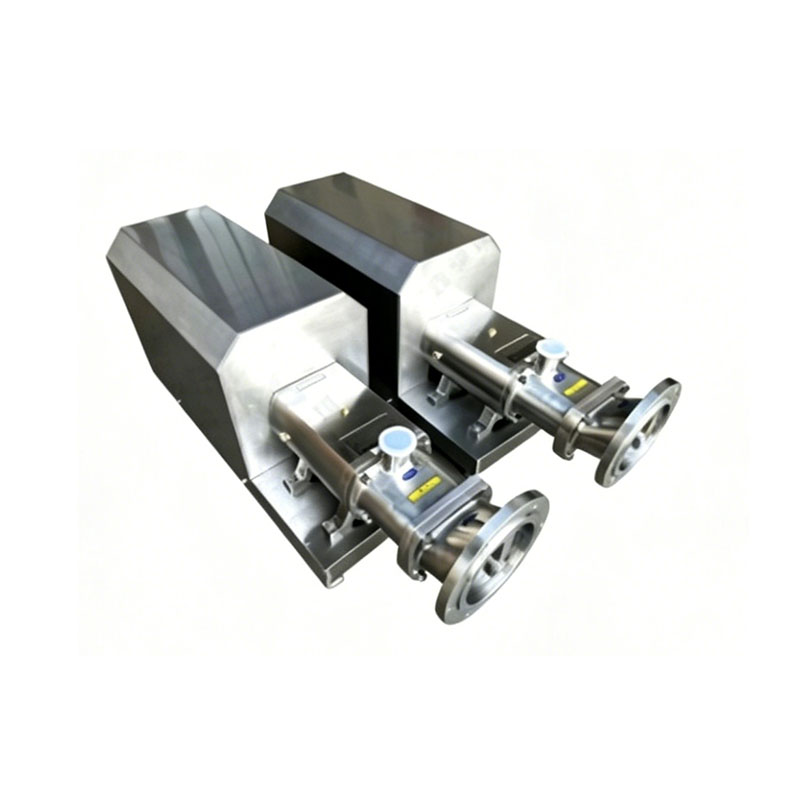

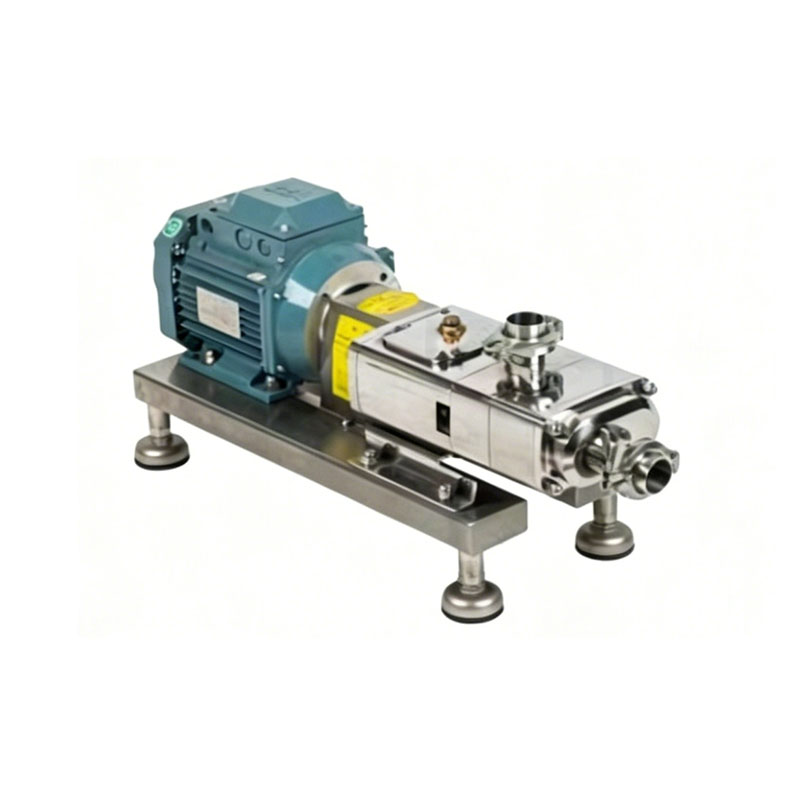

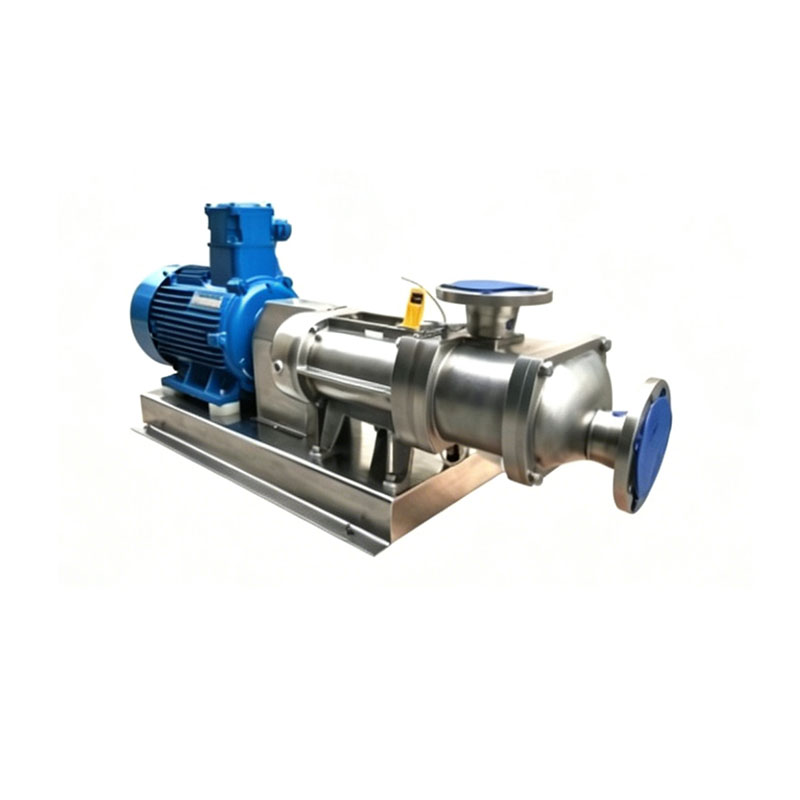

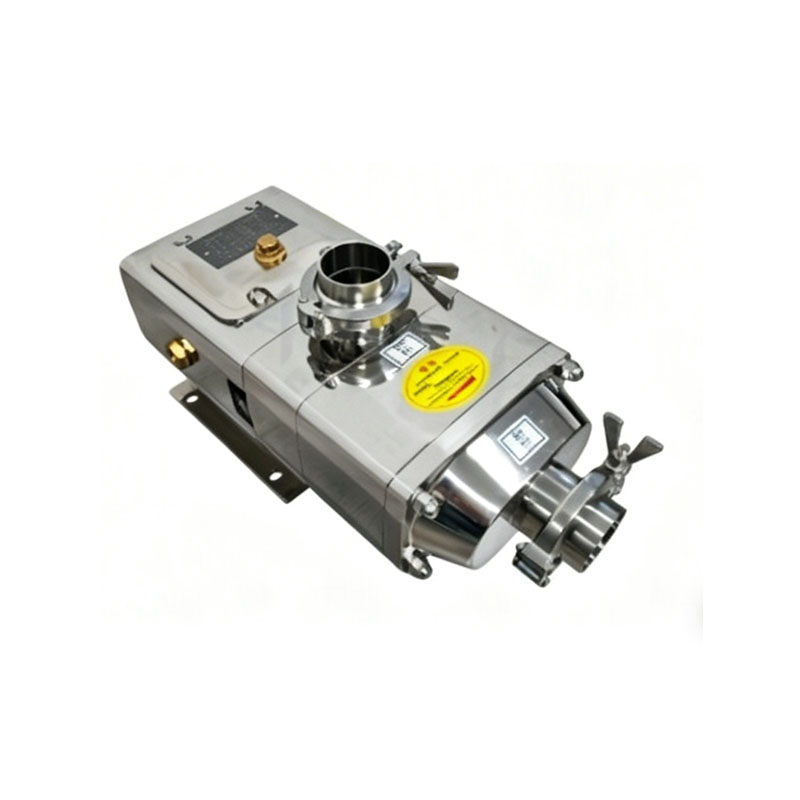

KJLS Series Open-Type Stainless Steel Twin-Screw Pump Intermeshing Spiral System

The KJLS double screw pump produced by the company is the crystallization of modern design technology and modern high-precision processing and manufacturing technology; It is a new result of the integration of production process experts and the equipment manufacturing industry. Specially designed pair of spiral systems, mesh with each other, while using modern processing technology and means (such as electric spark technology, laser cutting, multi-axis dynamic CNC programming machining center, etc.), to ensure that the pump body has relative movement of the double-sided rotor without any direct contact between metals. From the design and structure to ensure the system operation of no contact, no wear, so as to ensure the equipment system is trouble-free, long life.

A pair of specially designed helical systems mesh with each other, forming a series of dynamic space surface sealing surfaces between them. Due to the mesh of the helix and the tight fit of the helix with the liner, a series of multiple sealing spaces are separated between the suction and discharge of the pump. With the rotation and meshing of the spiral, these sealed Spaces are continuously formed at the suction end of the pump, sealing the liquid in the suction chamber into it, and the suction chamber is continuously pushed along the spiral axis to the discharge end and the liquid enclosed in each independent space is continuously and smoothly discharged, just as the nut is constantly pushed forward when the spiral is turned. This is the basic working principle of a series of double screw pumps.

KJLS series double Screw pump adopts open, modular and sanitary structure design. The whole system consists of three main parts: pump body transmission gearbox and motor, Adopting all stainless steel hygiene standards, all parts in contact with materials are made of high-grade high-quality 304 or 316L hygiene grade stainless steel, and the transmission part is also made of three structures: ductile iron, 304 stainless steel, and cast steel, to maintain the high level and quality of the equipment.

Model	A	H	L	H2	H3	L2	B	D

KJLS-60	400	330	838	200	104	162	1.5"	2"

KJLS-90	400	330	990	160	140	156	2"	2"

KJLS-110	430	385	990	207	140	192	2.5"	2.5"

KJLS-140	475	425	998	217	140	195	3"	3"


KJLS-160	480	425	1038	227	142	200	3"	3"
