Home / Products / Stainless Steel Screw Pump / RV Series Internal-Meshing Rotary Stainless Steel Single-Screw Metering Pump

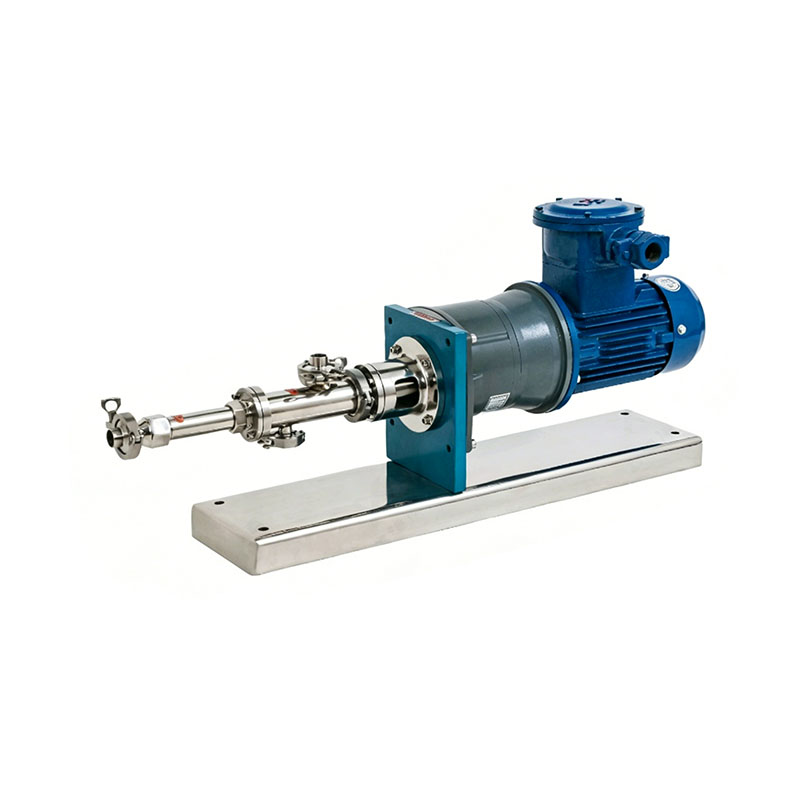

RV Series Internal-Meshing Rotary Stainless Steel Single-Screw Metering Pump

The RV series single screw metering pump produced by our company is an internal meshing rotary positive displacement pump. A sealed cavity is formed between the stator and rotor, which can continuously, uniformly and with constant volume transfer the medium from the suction end to the output end. The speed can be adjusted to control the flow, and it can be used as a metering pump. Strong self-absorption, small mechanical vibration, no pulse. It can transport viscous, granular, fiber, poor fluidity, jam, lees, flocculant, paint and other media. The material can be suctioned out smoothly under vacuum and negative pressure. The stable conveying flow is 1L. 2000L per hour, the pressure is 0.1MPa~2.4MPa, and the accuracy is ± 1%.

Product Parameters
RV Power(kw) Flow(100) Flow(300) Flow(460) Pressure(mpa)
0.43  0.2  4.5  15.5  20.7  1.8
0.83  0.4  27  41.4  1.8
1.53  0.4  16.8  50.4  77.2  1.8
3.2  0.55  33.7  101  155  1.8
6.3  0.75  67.5  201  318  1.8
6.4  0.75  67.5  201  318  2.4
12.1  1.1  135  405  621  0.6
12.2  1.1  135  405  621  1.2
25.1  1.1  270  810  1242  0.6
25.2  1.5  270  810  1242  1.2
