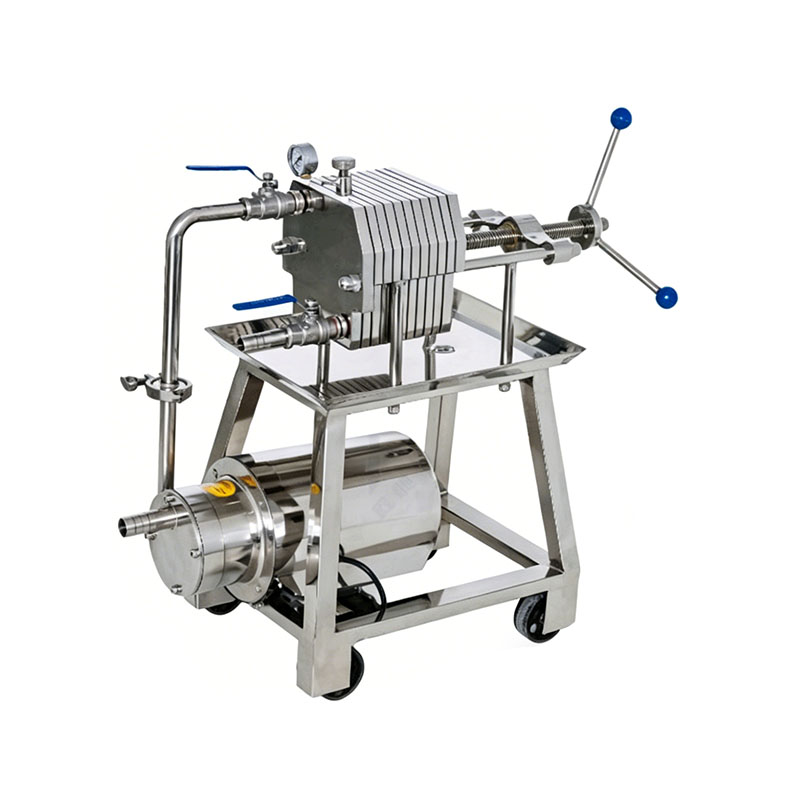

WBG-1 Series Stainless Steel Plate Frame Multi-Layer Filter

The WBG-1 series stainless steel plate frame multi-layer filter is a high-capacity filtration system designed for continuous and large-scale production. Made from SUS304 or SUS316L stainless steel, it ensures durability, corrosion resistance, and compliance with sanitary standards.

Adopting a multi-layer plate and frame structure, this filter significantly enhances filtration precision and throughput. By stacking multiple filter layers, it allows simultaneous multi-stage filtration, making it suitable for fine filtration, deep purification, and sterilization processes. The system supports various filter membranes to adapt to different process requirements.

With its larger filtration area, higher efficiency, and strong processing capacity, the WBG-1 filter is widely used in industrial-scale applications such as pharmaceuticals, brewing, chemical processing, and environmental protection systems.

Product Parameters
Model Number Of Layers Filter area (m²) Filter material size (mm) Filter media (μm) Filter pressure (mpa) Water flow (t/h) Motor Power (kw) Overall dimension (mm)
WBG-100 10  0.078  φ100 0.8  0.15  0.8  0.55  680*310*580
WBG-150 10  0.17  φ150 0.8  0.15  1.5  1.1  780*350*700
WBG 200 10  0.34  φ200 0.8  0.15  1.1  820*380*760
WBG-300 10  0.7  φ300 0.8  0.15  1.5  920*500*900
WBG-400 10  1.25  φ400 0.8  0.15  2.2  1260*600*1120
WBG-400 16  φ400 0.8  0.15  1350*600*1150
WBG-400 20  2.5  φ400 0.8  0.2  10  1420*600*1180
WBG-400 32  φ400 0.8  0.3  12  1588*600*1180
WBG-400 40  φ400 0.8  0.2  12  1708*600*1180
WBG-400 48  φ400 0.8  0.2  12  1828*600*1180
WBG-500 10  1.96  φ500 0.8  0.2  10  1350*720*1280
WBG-600 10  2.82  φ600 0.8  0.2  12  5.5  1550*850*1480
WBG-200 10  0.4  200*200 0.8  0.15  1.1  820*380*760
WBG-300 10  0.9  300*300 0.8  0.15  1.1  920*500*900
WBG-400 10  400*400 0.8  0.15  10  1.5  1260*600*1120
WBG-400 20  400*400 0.8  0.15  12  2.2  1420*600*1180
WBG-400 26  400*400 0.8  0.2  15  2.2  1500*600*1180
WBG-400 32  400*400 0.8  0.2  18  2.2  1588*600*1180
WBG-400 38  400*400 0.8  0.3  21  2.2  1720*620*1200
WBG-400 44  400*400 0.8  0.3  23  3.0  1820*650*1250
