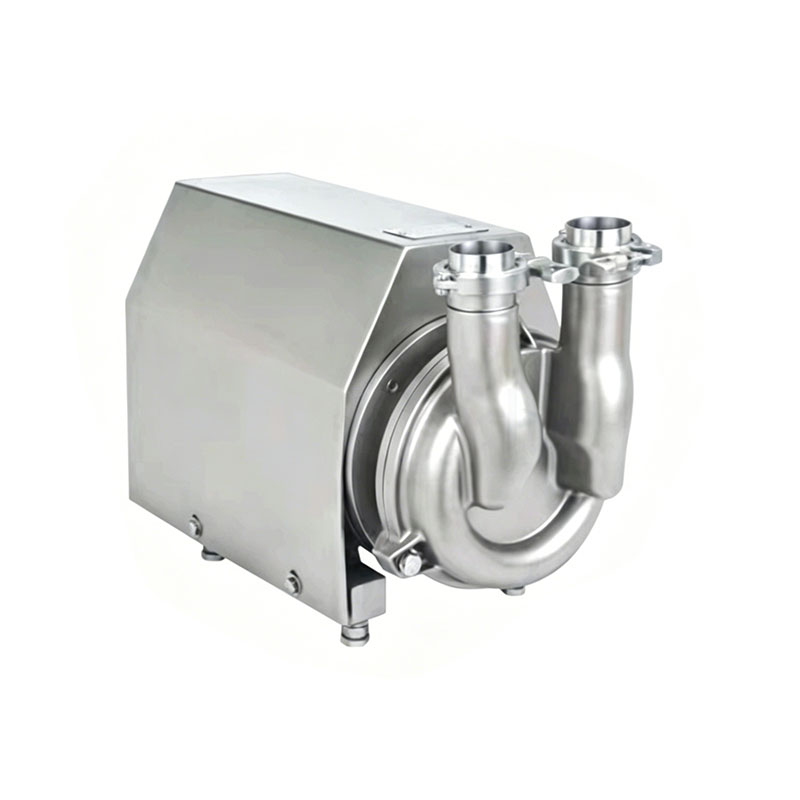

Stainless Steel Return Pump Liquid Self-Priming Transfer Pump

The stainless steel self-priming pump has digested and absorbed the advantages of similar foreign products. It is designed after mapping and improvement, with compact and reasonable structure and precise manufacturing. Some materials of the self-priming pump are made of acid-resistant stainless steel (international standard AISI316), which is particularly resistant to acid and alkali corrosion and meets the food hygiene requirements.
The characteristic of stainless steel self-priming pump is that it can transport liquid mixed with air or foam, even in the pump chamber with only air.
The pump is a self-priming pump for liquid in the fluid industry, which can generate a maximum negative pressure of 0.6 in the pump chamber by compressing the air. Especially, it is used in ClP cleaning system to self-priming and transporting the liquid in the tank and ClP return pipeline to keep the pipeline free of water.

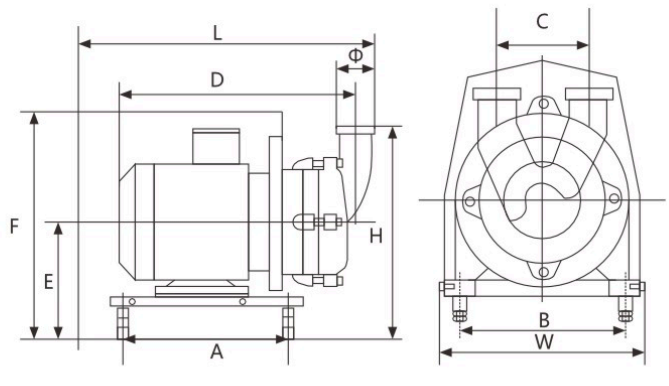

Product Parameters

Serial No Specification Motor power A   B C D   E F H L W Inlet Outlet
CIP 4KW 280  190  122  460  207  420  390  550  262  φ51 φ51
CIP 1.5W 280  160  122  460  180  355  340  520  212  φ51 φ51

Model Flow Lift Power Inlet/outlet RPM
r/min
CIP 3-10T 16M 1.5W φ51 1420
CIP 15-20T 24M 4KW φ51 1420
