JFYB Series Sanitary Self-Priming Negative Pressure Pump With Eccentric Guide Wheel

Product Overview:
The JFYB series self-priming negative pressure pump is specially designed and developed by our company for customers, with the addition of an eccentric guide wheel. During pump operation, the liquid forms a liquid ring in the eccentric guide wheel cavity under the action of the eccentric guide wheel, thereby achieving gas-liquid mixed flow. The pump cover is made of stainless steel round steel, which is forged and processed by a rotary press machine, and then subjected to solid solution and aging treatment. It is processed and formed in one go by a CNC machining center, with a smooth surface and better corrosion and cavitation resistance during long-term use. Our company uses special stainless steel for the pump shaft, which has high strength, hardness, and strong corrosion resistance. Both materials are not easy to bite during operation and are easy to disassemble during maintenance. The impeller adopts an open design and is formed by CNC machining in one go. It is tested by a high-precision dynamic balancing machine to ensure that the pump runs more smoothly and has low noise. The machine seal adopts an external balanced type, which is cleaner in use. The entire processing process adopts smooth transitions and no dead corners, which is particularly suitable for liquid transportation and return in online ClP and SlP systems.

Technical Characteristics:
· Industry sectors: food, beverage, juice, biotechnology, pharmaceuticals, dairy products, fructose, alcohol, vinegar, soy sauce, daily chemical industry, water treatment, etc.

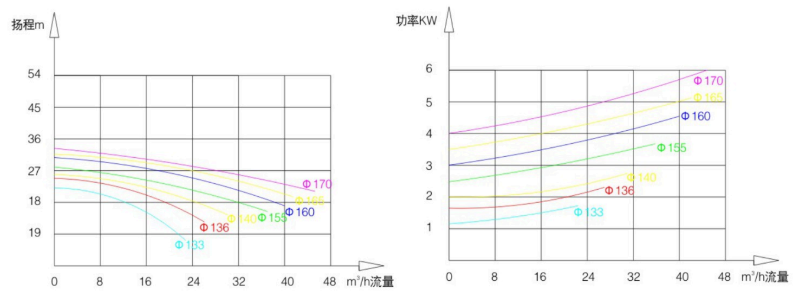

· Scope of use: Flow rate(≤ 45m ³/h); Head (≤ 30m); Pressure (≤ 20 bar); Temperature(≤ 180 °C).
· Mechanical seal: single machine seal (silicon carbide/graphite, silicon
carbide/silicon carbide, hard alloy/hard alloy).
· Connection methods: union, quick fit, flange (ISO DIN、SMS.
IDF、RJT、GB).
· Material and sealing:316,316L, EPDM, fluororubber, etc.
· Motor and support legs: ordinary, explosion-proof (voltage optional),
adjustable support legs.

Optimize Mechanical Sealing:
The internal shaft seal optimizes the cooling and lubrication of the sealing chamber surface, reducing the risk of "dry operation" while ensuring efficient heat dissipation.
· Ensure perfect sealing surface cleaning.
· Maintenance work: They must remove the pump cover, impeller, and shaft seal.
· This accessory can be easily adjusted for the application of mechanical shaft sealing water flushing or sealing liquid under aseptic operation.
· Double-end mechanical seal is a simple static ring mirror seal; Add coaxial moving ring components. Same sealing surface and O-ring.
