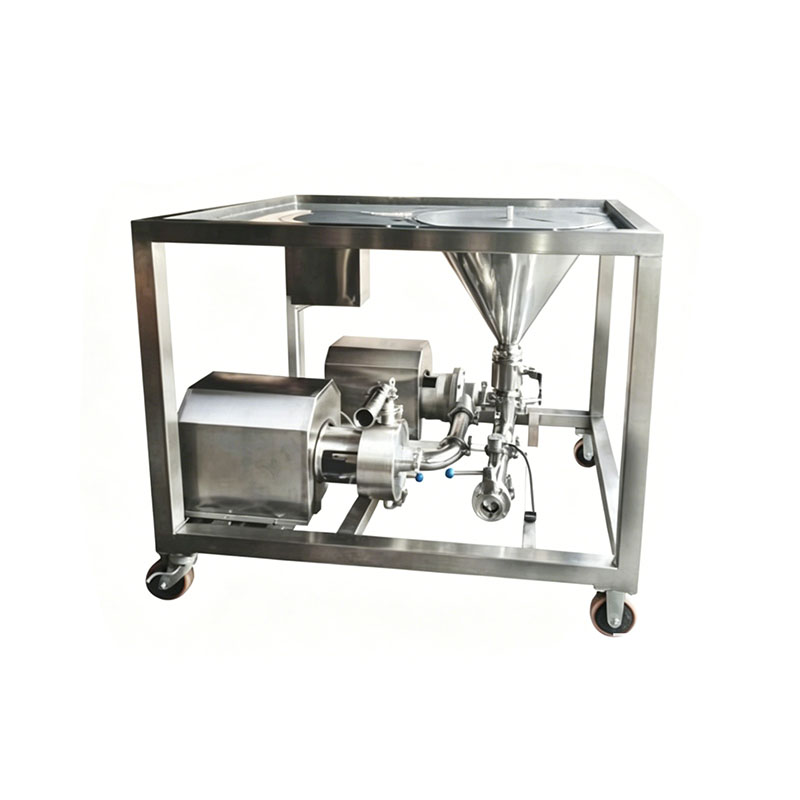

Stainless Steel Water Powder Mixer for Dairy and Beverages

This solid-liquid mixer consists of a main body and a centrifugal pump water wheel, which is installed vertically. The liquid and solid substances are pumped in separately through a double-walled pipeline, avoiding condensation into blocks before entering the main body. The liquid enters the main body of the mixer at high speed, creating a vacuum in the center of the water turbine to suck in solid substances. Solid matter is evenly sucked in through a valve located below the bucket. The design is simple and diverse in functionality. It can quickly and evenly mix various solid substances without coming into contact with air. fully mix and recycle the product. In some cases, online can be used without the need for recycling. Hygienic design, quick installation and connection, and convenient disassembly and assembly. There is no need to disassemble equipment for cleaning and disinfection. Mechanically close the valve and maintain cleanliness internally. 40° standard bucket mouth tank. This equipment is designed specifically for dairy and beverage enterprises to mix solid and liquid substances, and produce syrup, sorbitol, glucose, lactose, and their by-products; Milk powder reduction; Dissolve cocoa powder or white sugar into milk; dissolve whey powder; Flour and starch in water; make saltwater; pre-mixed yogurt and other dairy products.

Product Parameters
Name/specification KTRL-A-10 KTRL-A-20 KTRL-A-30
Capacity 10T/H 20T/H 30T/H
Impeller diameter φ160mm φ170mm φ180mm
Liquid inlet and outlet diameter φ38mm φ51mm φ63 mm
Max.work pressure 0.3Mpa 0.3Mpa 0.3Mpa
Absorbing temperature ≤80℃ ≤80℃ ≤80℃
Motor power 3.0Kw 5.5Kw 7.5Kw
Dimension 735×500×1005mm 800×500×1200mm 800×500×1300mm
Weight 110kg 130kg 185kg
