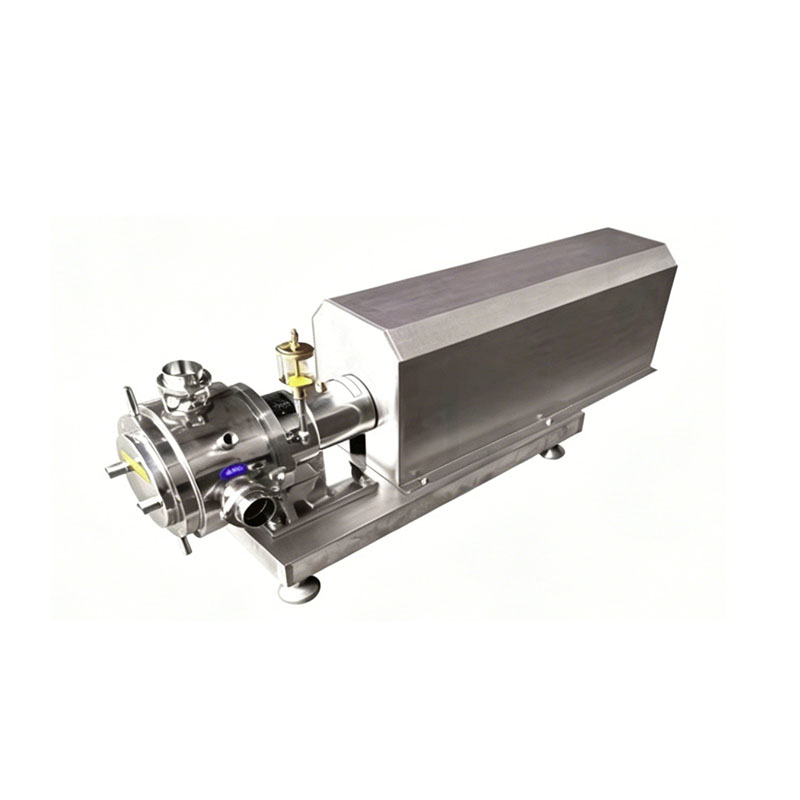

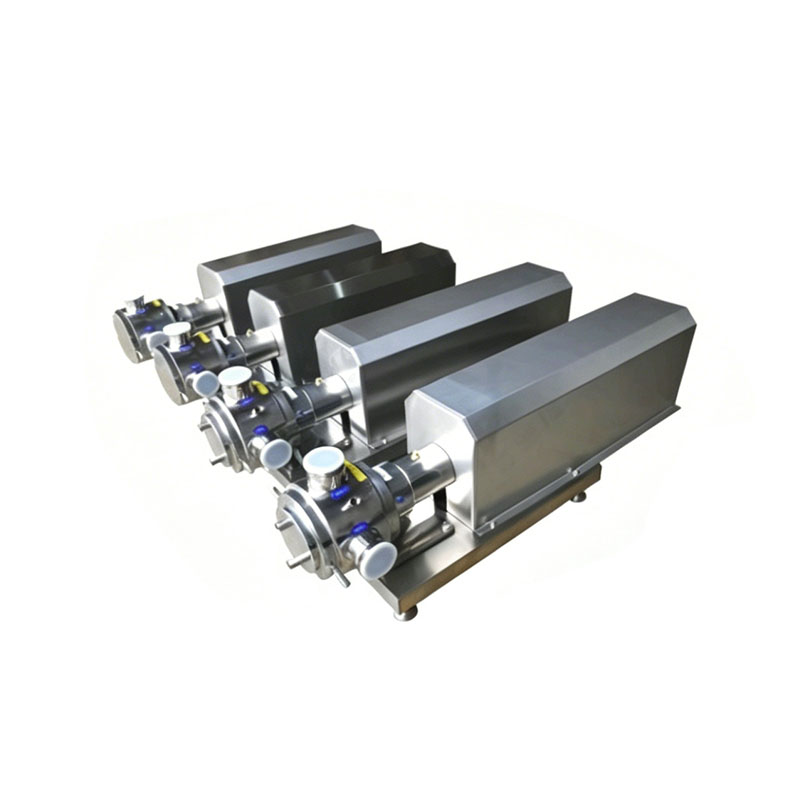

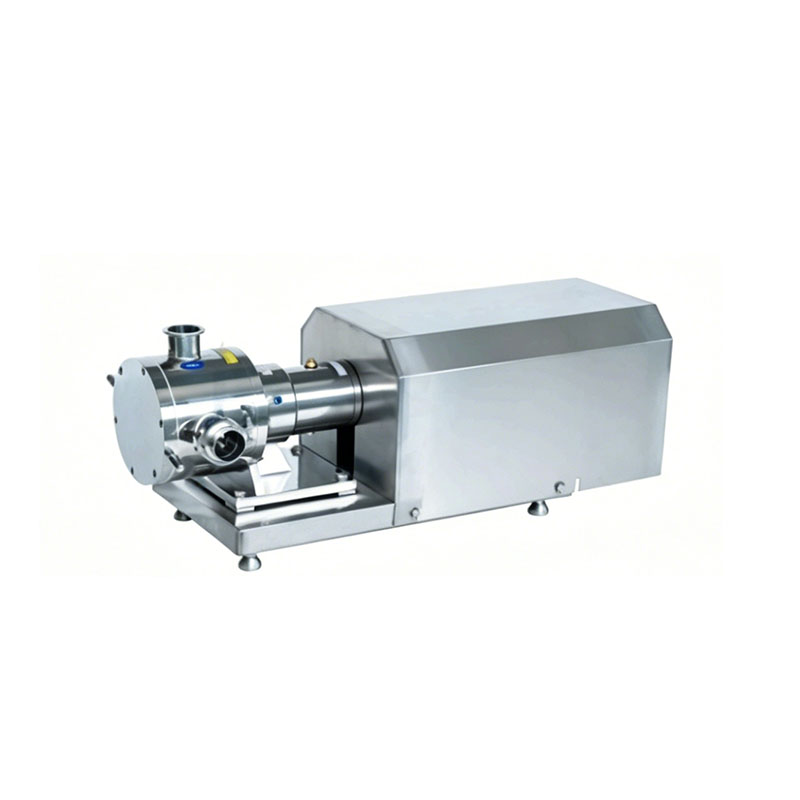

JTS Series High-Viscosity Pulse-Free Stainless Steel Sine Pump Selectable Interface Types

Any good or well-functioning product has a simple construction -- and a few components. Sine pumps are no exception.
The sine wave shape of the impeller means that a chamber can be formed with each rotation (up to 4 times each time it passes through the bushing space). Through this movement, mobile products can be pushed or emitted. The control scraper divides the pump chamber into suction chamber and discharge chamber to ensure the pressure
difference between the inlet and outlet. At the same time, the control scraper also plays another important role, that is, the forced lubrication of the pump shaft sleeve through the product.
Sinusoidal pumps - Excellent efficiency and an effective choice for high viscosity, ultra-low shear delivery.
Ultra-low shear transport: Safe and non-destructive transport even with large amounts of solid material and fragile products.
High viscosity up to the limit offlow capacity, up to 4,000,000cps.
No pulse, smooth transmission accurately adjusts the flow volume, no interference vibration, the charging machine can uniformly supply stable product quantity.
Sinusoidal pump: does not use rotor, planetary gear, piston and other devices, but uses a specially manufactured blade, the shape of the blade is like two sine wave curves. It also operates with a movable scraper and a fixed bushing. Constitutes a special form of positive
displacement pump. This enables ultra-low shear of the fluid. No pulse transmission. Even at a back pressure of 10bar (conveying water), no movement is shown on the manometer.

Part material:
· Guide rails made of stainless steel.
· Control scrapers made of different materials are used to separate the suction and discharge ports, ensuring outlet pressure.
· Bushings made of different materials, such as Polyamide Peek, or stainless steel, are used according to different conveying media.
· The blades are made of stainless steel and have a sine wave shape.
· Pump casing made of stainless steel (W.No.1.4571).

Available in a variety of interface forms: clamp, thread, flange. The above is the optional import and export connection direction.

Product Parameters
Model Displacement per rotation (L) Diameter of inIet and
outlet
Range of RPM
(r/min)
Rang of flow rate
(L/H)
Electrical power
inch mm KW HP
JTS-SP-1" 0.06  25  50-1000 180-3600 1.5
JTS-SP-2" 0.11  51  50-1000 330-6600 2.2
JTS-SP-2.5" 0.28  2.5  63  50-600 840-11800
JTS-SP-3" 0.45  76  50-600 1350-16200
JTS-SP-3.5" 0.75  3.5  89  50-600 2250-27000 5.5
JTS-SP-4" 1.05  102  50-600 3150-37800 7.5  10
JTS-SP-6" 2.5  152  50-600 7500-90000 15  20
