KZB3A Series Stainless Steel Cam Rotor Can Be Equipped With Various Rotors

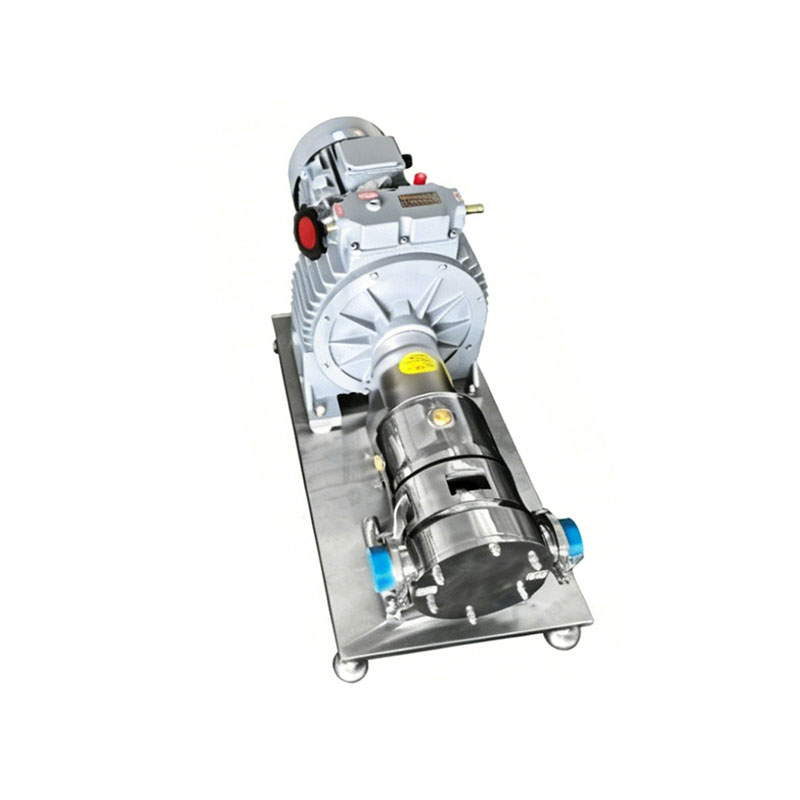

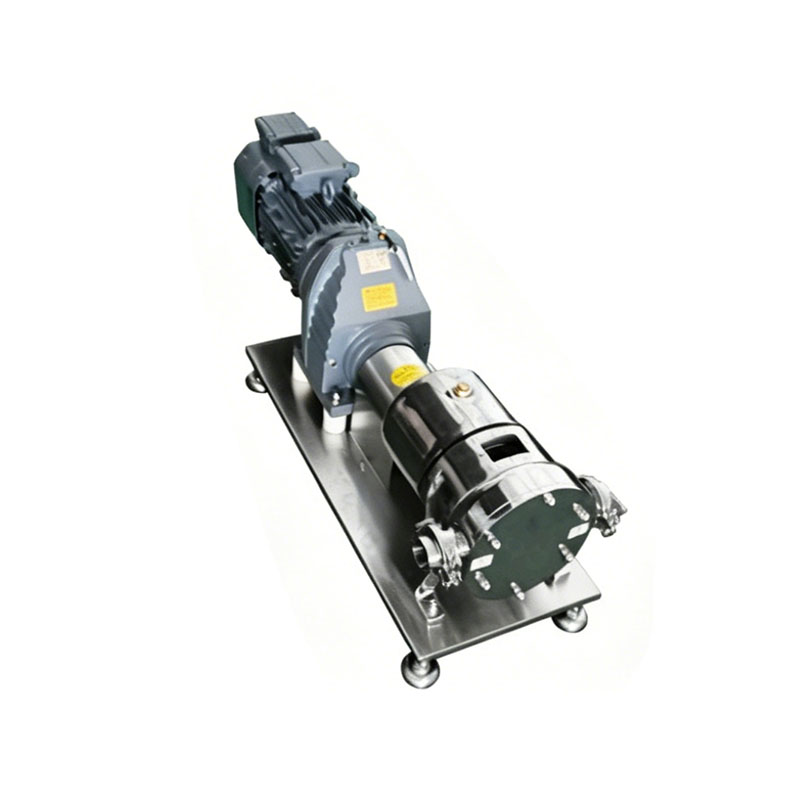

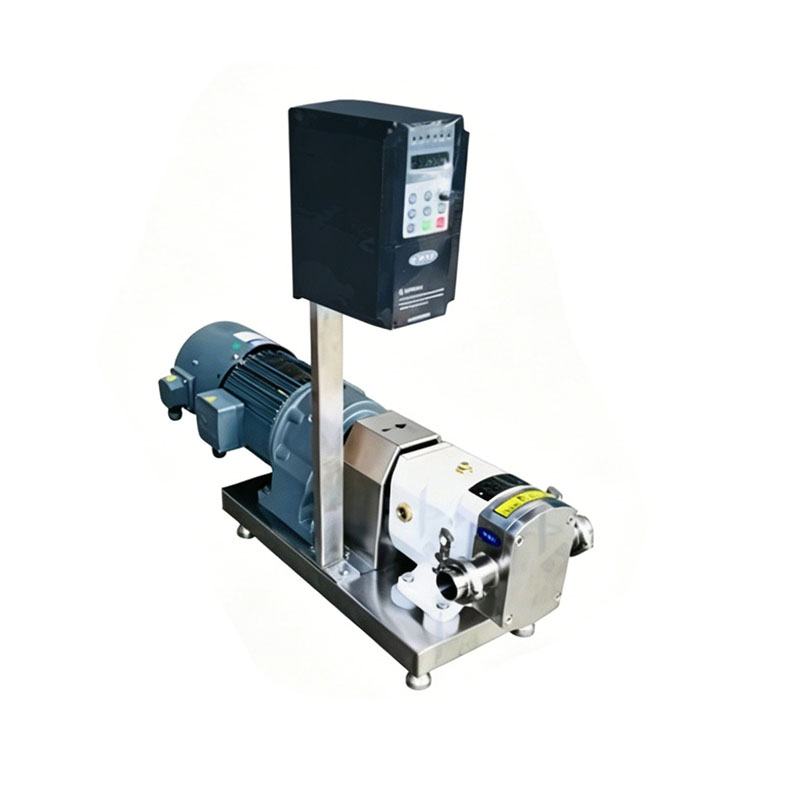

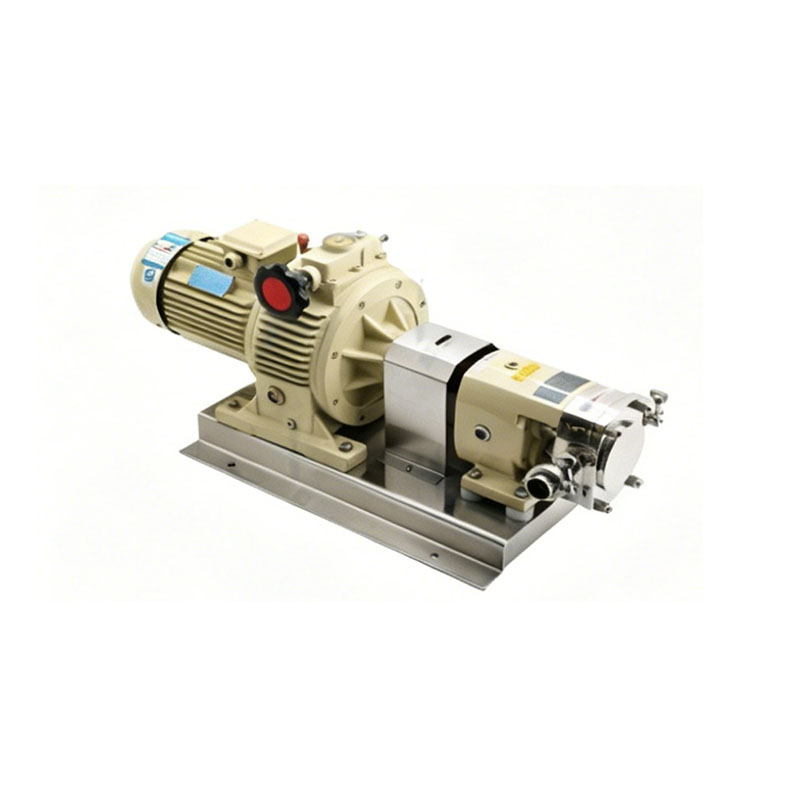

KZB3A series stainless steel cam rotor pump produced by our company is a positive displacement pump. It is also convenient to control the flow by rotating the speed. The rotating speed is generally between 200rpm~600rpm, and the liquid with high viscosity can be transported up to 1000000CP. Its unique working principle shows its strength under the high temperature materials, and can ensure that the materials will not be damaged in the transportation process. All parts in contact with materials are made of SUS304 and 316L stainless steel, which meet the requirements of high-concentration materials for the food industry, pharmaceutical industry, chemical industry, hair dye, sugar solution, cosmetics, paint, vaccine delivery, etc.

Three Blade Rotor
The rotor, which is widely used in various industries, is a standard configuration for conveying various viscous materials.

Single Blade Rotor
In order to solve the problem of special configuration for conveying solid materials containing large particles, its unique shape and curve make it more advantageous for other types of pumps when conveying solid materials containing large particles, and can effectively avoid particle damage in the conveying process.

Butterfly Rotor
Butterfly rotor is usually suitable for conveying filling materials or viscous materials containing solid particles. During transportation, a small part of the particles will be broken.

Multiblade Rotor
When the rotor blade exceeds three blades, its volume decreases due to the increase in the rotor blade. The more rotor blades, the less the volume. The stability of the multi-blade rotor is relatively improved when conveying materials, but it is easy to break granular materials in the conveying process.

Product Parameters
Model Displacement per 100 revolutions Recommended speed regulation range Corresponding flow Power (kw)
KZB3A-3 3L 200-500 300-800 0.55
KZB3A-6 6L 200-500 650-1600 0.75
KZB3A-8 8L 200-500 850-2160 1.5
KZB3A-12 12L 200-500 1300-3200 2.2
KZB3A-20 20L 200-500 2100-5400
KZB3A-30 30L 200-500 3200-6400
KZB3A-36 36L 200-400 3800-7600
KZB3A-52 52L 200-400 5600-11000 5.5
KZB3A-70 70L 200-400 7100-14000 7.5
KZB3A-78 78L 200-400 9000-18000 7.5
KZB3A-100 100L 200-400 11000-22000 11
KZB3A-135 135L 200-400 15000-30000 15
KZB3A-160 160L 200-400 17000-34000 18.5
KZB3A-200 200L 200-400 21600-43000 22
