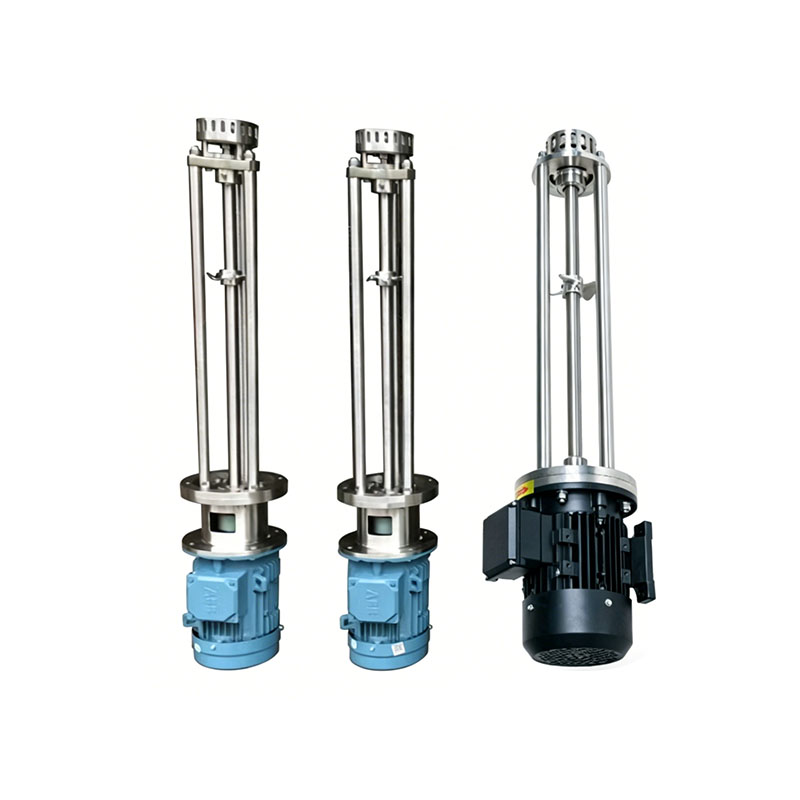

JRH Series High-Shear Vertical Stainless Steel Emulsifier

The JRH high shear homogenizing milk machine produced by our company is a vertically installed emulsification equipment. The stator and rotor are designed as claw type coupling mechanism. Materials are sucked in from the upper and lower parts of the main engine at the same time, and are thrown out centrifugally around. The shear homogenization efficiency is doubled to avoid the problem that the upper materials in the kettle are easy to producing dead angle. This product is suitable for homogenization. Fine, small-volume emulsification on various reaction kettles and ordinary containers and can also be used for transferring suspended cores. High-quality stainless steel SUS304 and 316L shall be selected for material contact.

Product Parameters

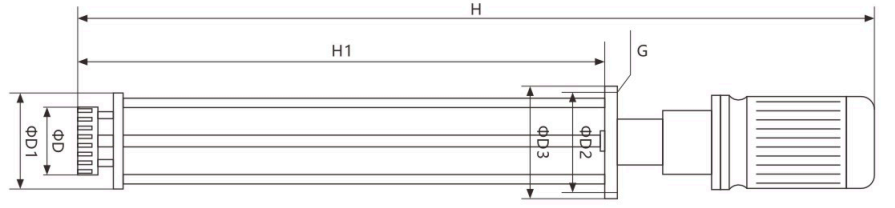

Model Processing Capacity Power Speed rpm   D D1 H1 D2 D3 H G
JRH65 5~10 0.75  2800   76  120  300  140  160  600  4×φ10
JRH90 10~50 1.5  2800   105  140  455  180  200  950  4×φ10
JRH100 50~100 2.2  2800   116  160  650  190  220  1005  4×φ12
JRH120 100~300 2800   141  195  725  225  260  1203  4×φ14
JRH140 200~800 7.5  2800   158  235  833  265  300  1520  4×φ16
JRH160 300~1000 11  2800   184  235  833  265  300  1655  4×φ16
JRH180 500~1500 18.5  2800   200  260  1200  300  350  2065  8×φ18
JRH200 800~2000 22  1400   220  260  1200  300  350  2130  8×φ18
JRH220 1000~3000 30  1400   250  295  1355  350  400  2525  8×φ20
JRH240 1500~5000 37  1400   270  295  1395  350  400  2585  8×φ20
JRH270 2000~8000 55  1400   330  380  1638  450  500  2995  8×φ20
JRH290 3000~10000 75  1400   350  395  1648  450  500  3050  12×φ20
