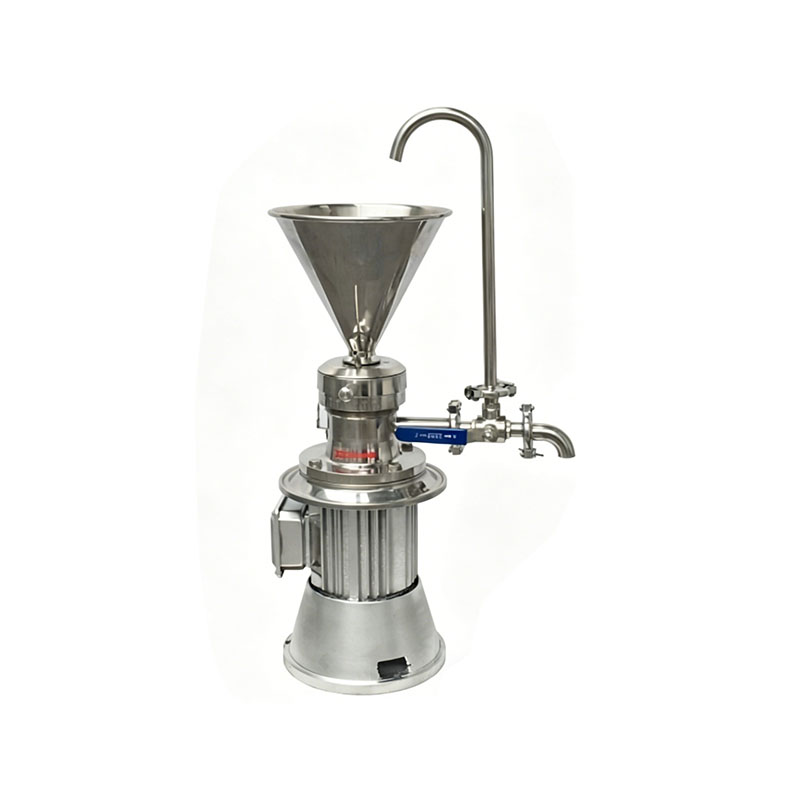

JM Series Multi-functional Dry-Running Stainless Steel Colloid Mill

JM colloid mill produced by our company can provide multifunctional idling operation according to the special requirements of users. The mechanical seal has no contact with the medium. The machine has good sealing performance, and can prevent volatility, flammability, and explosiveness, and can work under vacuum conditions. It is especially suitable for: essence, spices, medicine, drugs, petroleum, chemical industry, fine chemicals, biological agents, plant protein, animal protein, beer. It is used in food, universities, scientific research laboratories and other fields. So as to achieve explosion-proof and flameproof, prevent the volatilization of effective ingredients of processing materials or stimulate the working environment, and ensure the purity of materials. It can make the processed materials be effectively treated in multiple cycles to achieve the desired effect.

Product Parameters
Model Processing Fineness T/H
Output
Grinding Disc Diameter (mm) Coling Wate Pipe (mm) Outlet (mm) Inlet (mm) Rotating Speed rmp Power (kw) Weight (kg) Overall dimension(mm)
JM-L50 2-50 0.01-0.1 50  20  30  2900  1.5  45  280*400*700
JM-L65 2-50 0.01-0.5 65  10  20  30  2900  1.5  45  280*400*700
JM-L80 2-50 0.3-1 80  12  25  57  2900  85  350*550*950
JM-L100 2-50 0.5-2 100  12  32  76  2900  5.5  145  400*650*980
JM-L120 2-50 1-3 120  12  32  76  2900  7.5  145  400*650*980
JM-L140 2-50 1-4 140  12  40  89  2900  7.5  170  420*700*1150
JM-F50 2-50 0.01-0.1 50  20  30  2900  1.5  85  550*260*720
JM-F65 2-50 0.01-0.5 65  10  20  30  2900  2.2  85  550*260*720
JM-F80 2-50 0.3-1 80  12  25  57  2900  145  700*320*900
JM-F100 2-50 0.5-2 100  12  32  76  2900  5.5/7.5 225  800*400*980
JM-F120 2-50 1-3 120  12  32  76  2900  7.5  225  800*400*980
JM-F140 2-50 1-4 140  12  40  89  2900  11/15 285  800*400*1100
JM-F180 2-50 2-8 180  12  40  108  2900  18.5/22 390  900*420*1200
JM-W80 2-50 0.3-1 80  12  25  57  2900  80  630*380*980
JM-W100 2-50 0.5-2 100  12  32  76  2900  5.5/7.5 125  680*400*580
JM-W120 2-50 1-3 120  12  32  76  2900  7.5  125  680*400*580
JM-W140 2-50 1-4 140  12  38  89  2900  11/15 150  680*400*600
