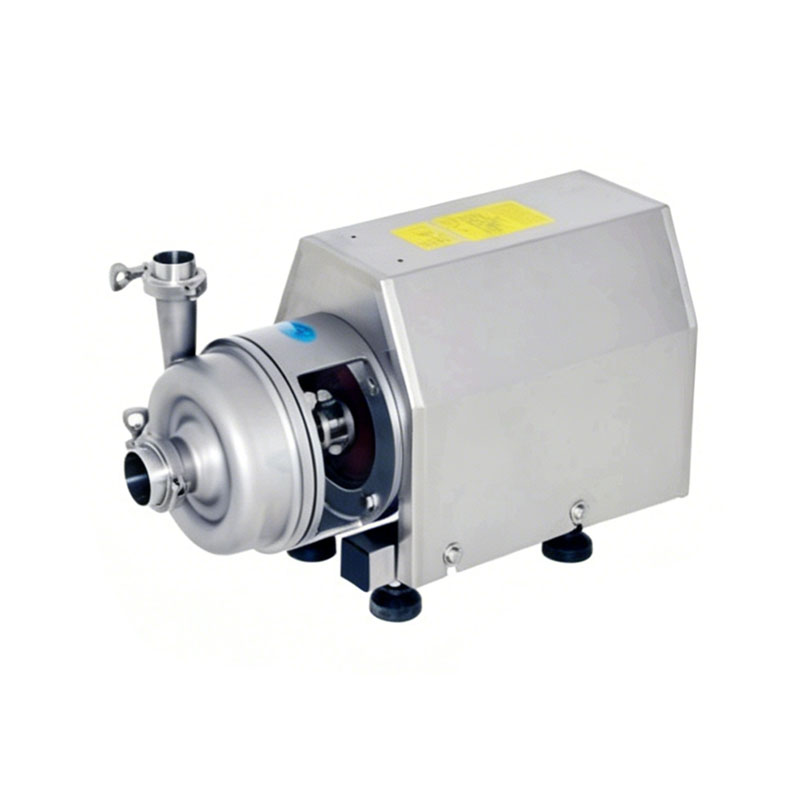

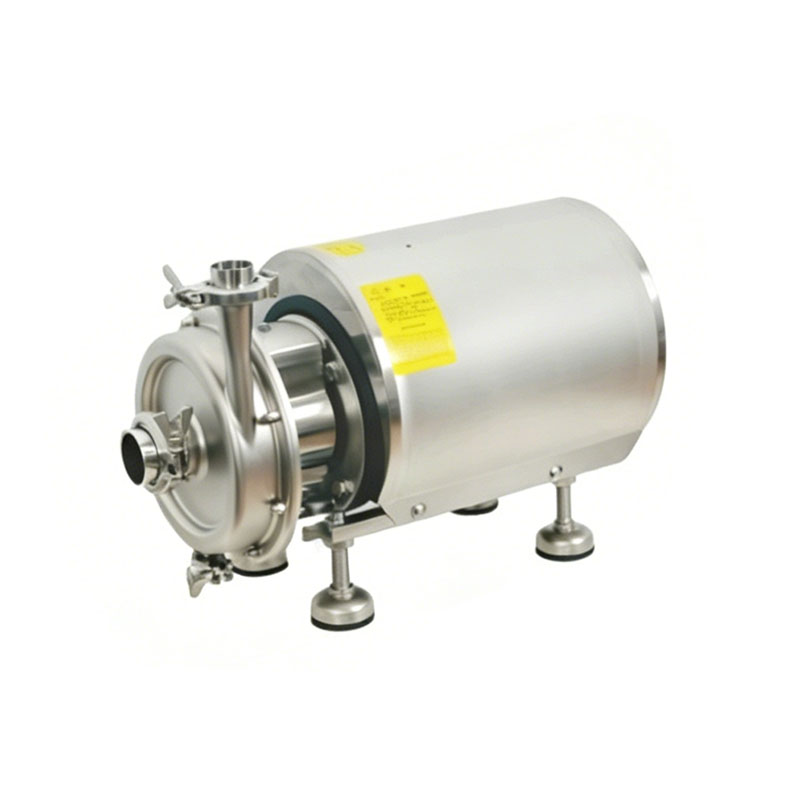

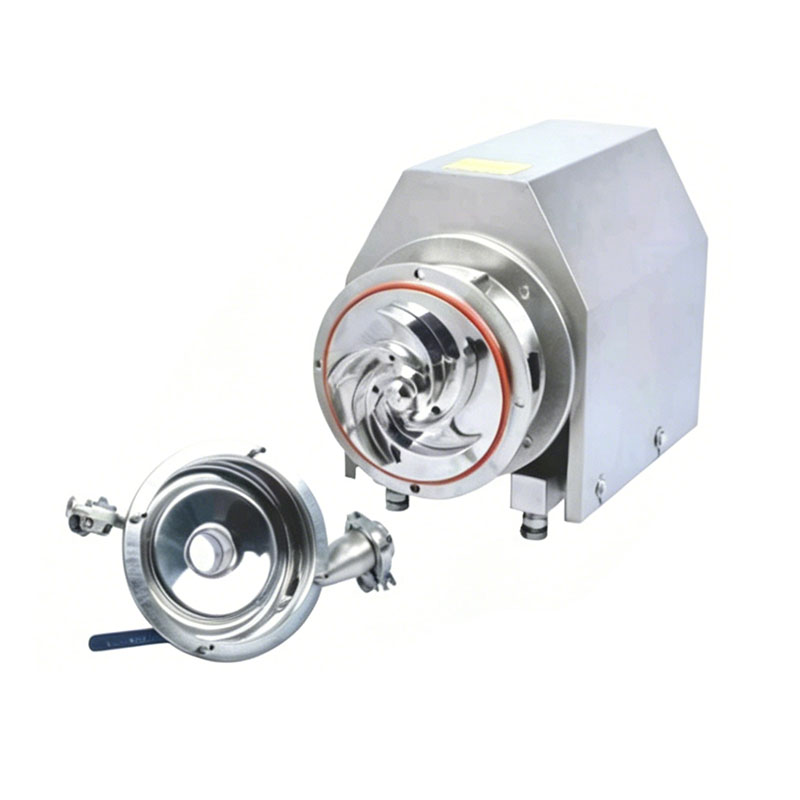

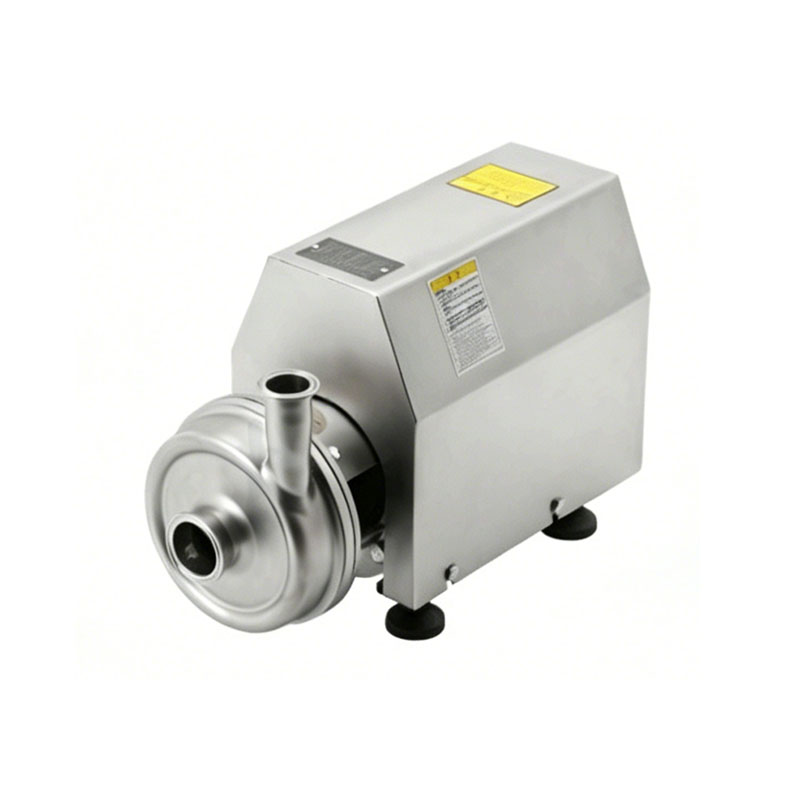

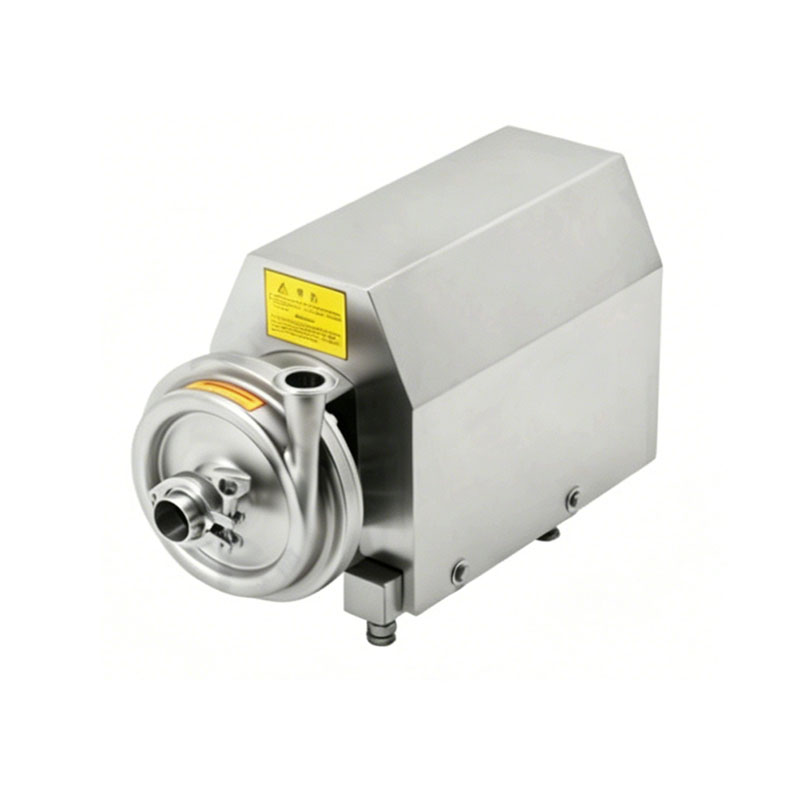

BAW-150 Series Stainless Steel Sanitary Centrifugal Pump for Various Liquid Food Products

It ls Suitable For Conveying Milk, Soybean Milk, Fruit Juice Drinks, Wine And Other Liquid Foods.

Product Parameters

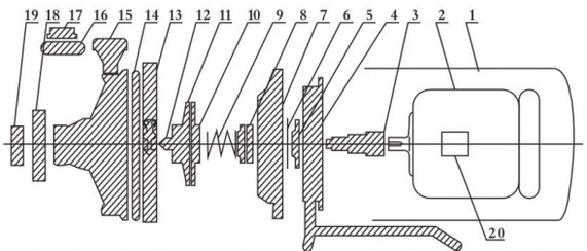

Structure Part Number
Motor outer cover Motor
Connecting  shaft Tripod
Sealing gasket Rubber sealing ring
Neijingzuo Mechanical seal ring
Spring 10  Inner impeller
11  Outer impeller 12  Screw cap
13  Pump head clamp 14  Rubber sealing ring
15  External pump head 16  Outlet nut
17  Sunrise connector 18  Inlet nut
19  Inlet connector 20  Cable line

Model Flow(t/h) Lift(m) Inlet And Outlet Diameter(mm) Power(kw) Overall dimension(mm) Weight(kg)
BAW-90 10  25  0.37  380×200×280 16
BAW-120 18  38/32 0.75  420×220×320 22
BAW-150 24  38  1.5  500×260×370 35
BAW-150 10  24  51/38 2.2  520×260×370 38
BAW-165 15  24  51  580×270×400 45
BAW-165 20  24  51  600×270×420 48
